SP Chemical Mixed-flow Pump

Short Description:

1.SP single stage chemical mixed flow pump
2.flow parts material can be changed
3.horizontal,single suction

Product Detail

Product Tags


Capacity ~7000m3/h
Head ~25m
Working pressure ~0.6MPa
Working temperature -20~180ºC

Product overview:

SP type chemical mixed flow pump is horizontal korah out type structure , pump shaft with protection shaft

sleeve , bearing with thin oil type lubrication ,oil level of the in bearing box can be controled by Constant

grease cup , the pump body with supporting feet , can stand any load from the pipe and directly transfer to

the foundation , the rotor won't be bent because pump  heavy loads , so as to ensure the bearing has the

best use life , the pump also equip with complete exhaust device .

Bearing: the ball bearings

Shaft seal: the packing seal or double mechanical seals.

Drive : see pump from the driver direction , clockwise rotation. .


a.High pump efficiency, low energy consumption.

b.Large cross section, little risk of clogging.

c. Strong structure, long working life.

b.In the whole performance range, energy consumption is uniform. The motor will not be overated

down when you start the pump with the valve closed.

Pump Structure:

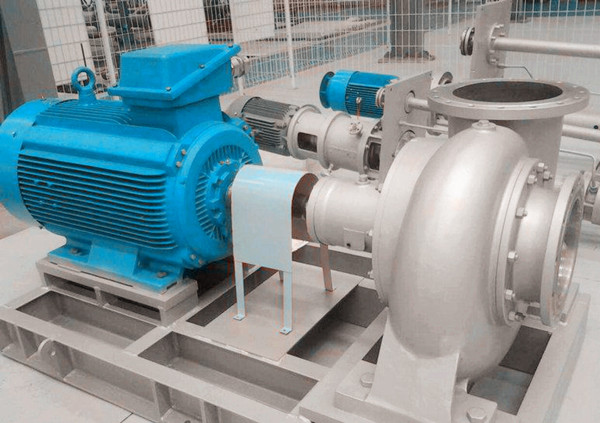

The SP Chemical Mixed-flow Pump

SPP 化工混流泵 SPP 化工轴流泵_副本
