High-Quality OEM Sewage Pump System Design Company Products - PH Series Ash Pump – Boda Detail:



Specifications

Performance Scope:
Capacity:100~1290m3/h
Head:37~92m
Motor Power45~550kw
Standard:JB/T8096-1998

PH ash pump is horizontal single stage single suction cantilever centrifugal ash pump.It can be used for hydraulic convey ash and delivering the sand mixed liquids in the mine.The maximum diameter of the solid is not bigger than 25mm.It allows the sand to pass discontinuously which the diameter is about 50mm.Our company now can produce 4PH,6PH,8PH(I),10PH(I),4PH-60.They all have the characteristics of long service life, simple structure and reliable.

TABLE OF PH SERIES OPERATING PERFORMANCE

Type Flow(m3/h) Head(m) Speed(r/min) Efficiency(%) Impeller Size(mm) Weight(kg)
4PH 100 41 1470 46 340 1000
4PH 150 39 1470 55 340 1000
4PH 200 37 1470 61 340 1000
4PH-60 140 61 1470 46 410 1050
4PH-60 220 59 1470 58 410 1050
6PH 330 48 1480 55 375 1200
6PH 400 47 1480 58 375 1200
6PH 480 45 1480 60 375 1200
6PH 350 62 1480 55 420 1200
6PH 550 54 1480 60 420 1200
8PH(I) 450 65 980 57 635 4000
8PH(I) 550 63 980 61 635 4000
8PH(I) 600 62 980 63 635 4000
10PH(I) 585 51 730 44 750 4600
10PH(I) 770 49 730 50.5 750 4600
10PH(I) 960 47.5 730 59.7 750 4600
10PH(I) 768 91.8 980 44 750 4600
10PH(I) 1030 88 980 50.5 750 4600
10PH(I) 1290 85 980 59.7 750 4600







Product detail pictures:

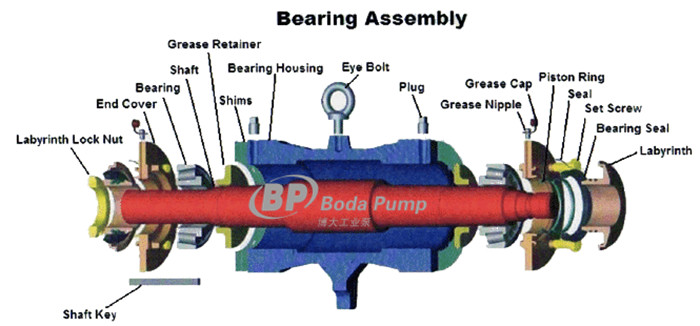

High-Quality OEM Sewage Pump System Design Company Products - PH Series Ash Pump – Boda detail pictures
