TZS\TZHS Series Heavy Duty Slurry Pump
Product Parameters
Capacity（m³/h）:12.6~5400
Head（m): 6~100
Pump outlet diameter（mm）: 25~450
Feature Of Pump
Double-casing structure; High efficiency, wear resistance, stable performance, strong part interchangeability. Liner and impeller materials can be abrasion-resistant high-chrome alloy or rubber. Pump discharge outlet can be rotated to 8 positions at 45-degree intervals for installation. Allows multi-stage series connection. Drive options: belt transmission or direct coupling. Shaft seal options: packed gland seal, expeller seal, or mechanical seal. Rotation direction: clockwise when viewed from drive end.
Application Fields
Mainly used in mining, metallurgy, municipal, electric power, coal, petroleum, chemical, building materials and other industries.

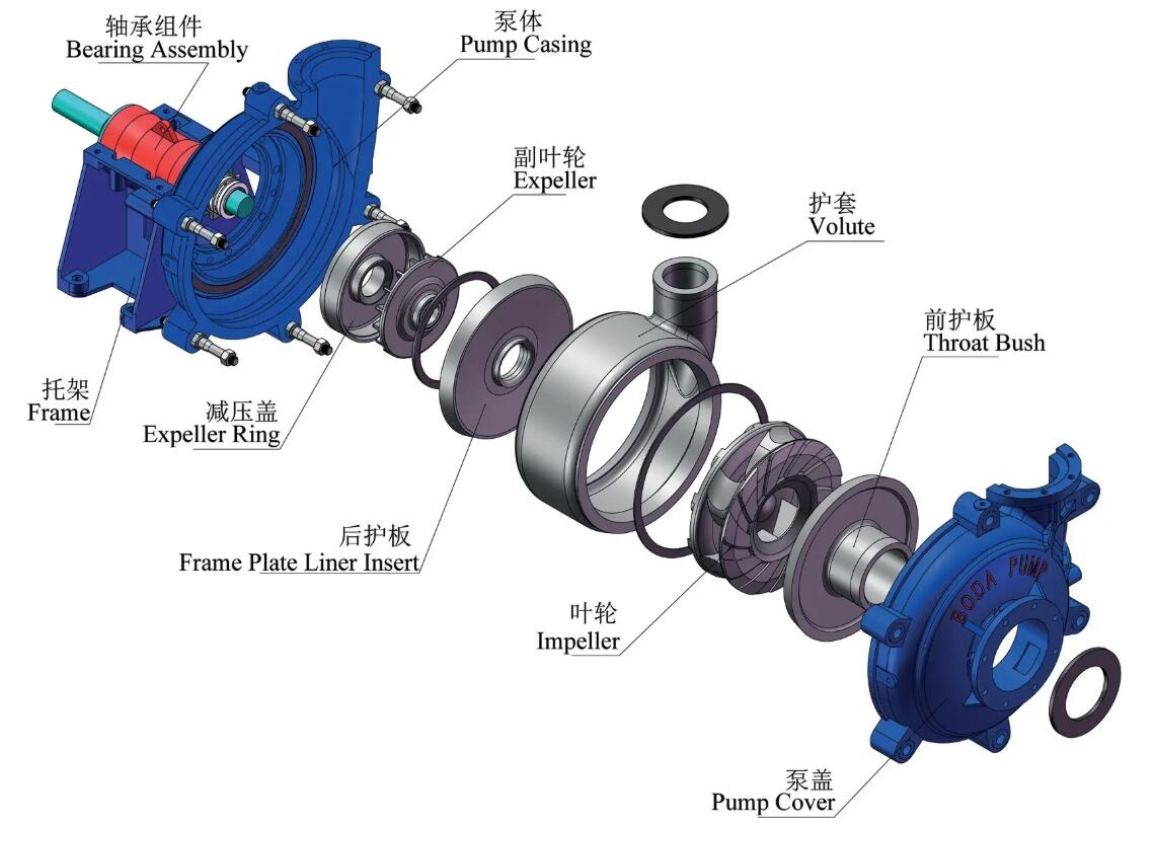

Structural Diagram

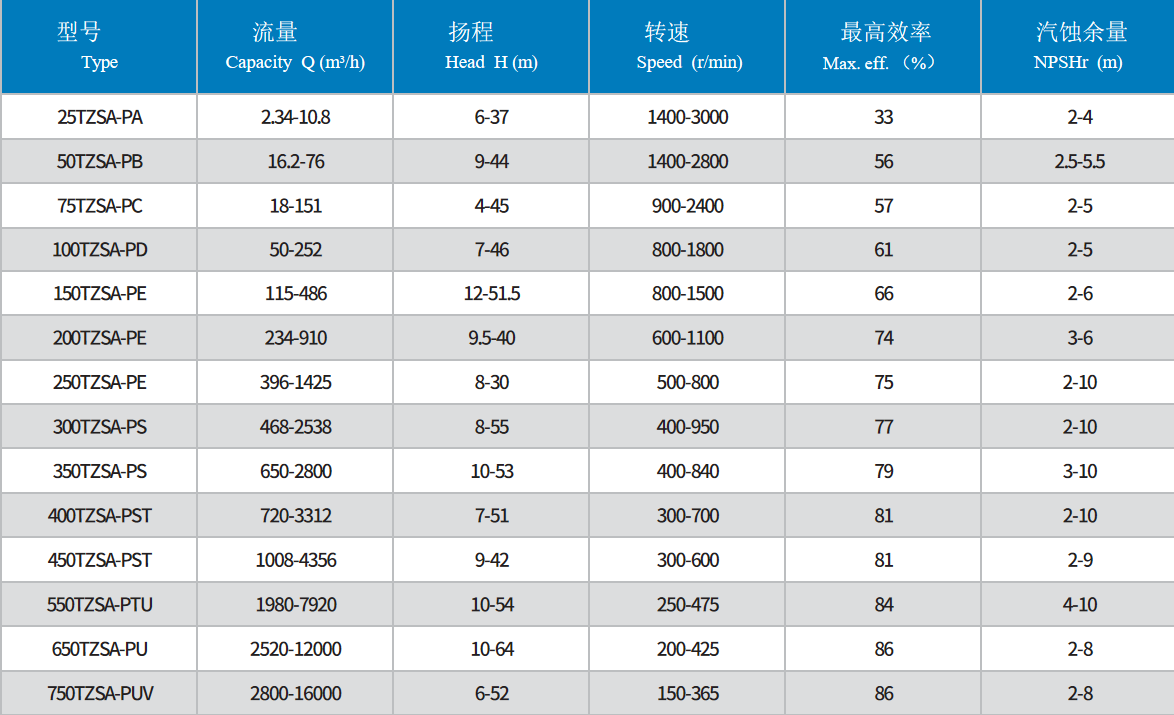

Performance Parameter Table

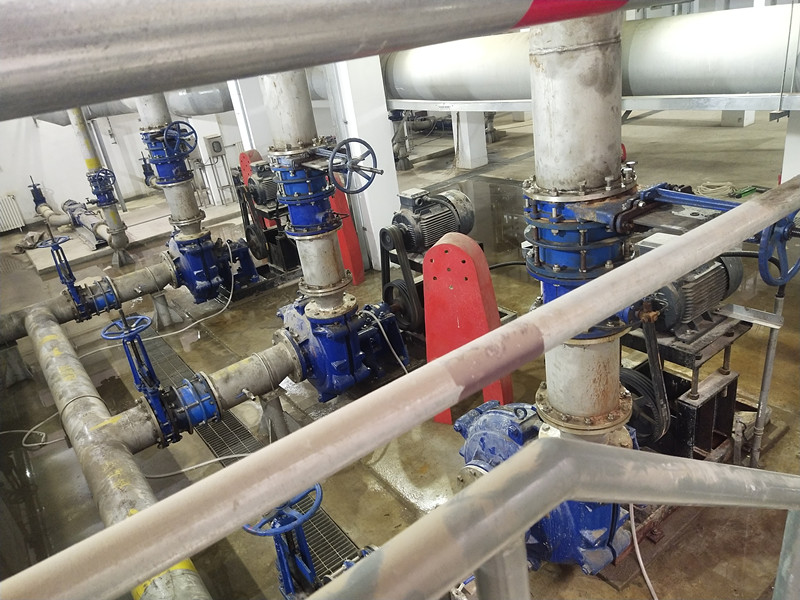

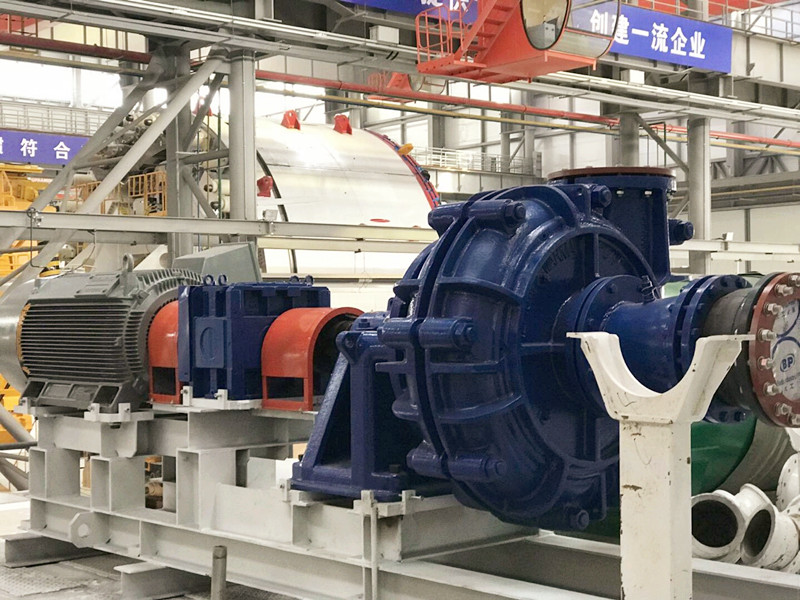

TZS Slurry Pump Application Site
