Slurry Pump Frame Plate Liner Insert

Short Description:


Product Detail

Product Tags

Slurry Pump Frame Plate Liner Insert completely interchangeable

Slurry Pump Frame Plate Liner Insert Material

1. BDA05 is a wear resistant white iron that offers excellent performance under erosive conditions.

The alloy can be effectively used in a wide range of slurry types.

The high wear resistance of alloy BDA05 is provided by the presence of hard carbides within its micro-structure.

Alloy BDA05 is particularly suited to applications where mild corrosion resistance, as well as erosion resistance is required.

2. BDA07 Marten-sic white iron with moderate erosion resistance.

3.BDA49 is suitable for low pH corrosion duties, where erosive wear is also a problem.

The alloy is particularly suitable for Flue Gas Desulphu-rization(FGD) and other corrosive applications, where the pH is less than 4.

The alloy can also be used in other mildly acidic environments.BDA49 has an erosion resistance similar to that of Ni-Hard 1.

 Slurry Pump Main parts:

• Impeller - front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
Hard metal and molded rubber impellers are complete interchangeable. Cast in impeller threads require no inserts or nuts. High efficiency and high head designs are also available.
• Liners - Easily replaceable liners are bolted, not glued, to the casing for positive attachment and ease of maintenance. Hard metal liners are completely interchangeable with pressure molded elastomers. Elastomer
seal rings back all liner joints.
• Throat Bush - Wear is reduced and maintenance simplified by the use of tapered mating faces to allow positive accurate alignment during assembly and simple removal.
• Bearing assembly - A large diameter shaft with short overhang minimizes deflection and contributes to long bearing life. Only four through bolts are required to hold the cartridge type housing in the frame.

Slurry Pump Spare Parts
Slurry pump wet end parts mainly include Impeller, volute liner, Casing, shaft, throat bush, wear plate, case, cover, stuffing box, lantern restrictor, cover plate bolt, throat bush, shaft sleeve, cover plate liner, frame plate liner...
1.centrifugal slurry pumps and spare parts can fully interchange with world famous brand.
2.These pumps are of heavy-duty construction, designed for continuous pumping of highly abrasive and corrosive slurries.
3. They feature a wide choice of replaceable abrasion resistant metal or moulded elastomer elastomer elastomer casting liners and Impellers, which are all interchangeable within a common casting assembly.
4.Wear -resistant Metal Liner and Rubber Liner available
5.Seal Type: gland seal , impeller seal and mechanical seal
6.Can be installed in multistage series
7.easy to maintenance

The properties of the rubber material:
We have variety of natural rubber and elastomers, which can be used for pumping corrosive or acid slurries. But the rubber material is not suitable for slurries which contain sharp solids.
When the slurries contain fine particles, the rubber material features good performance of wear resistant.

The properties of the high chrome white iron:
We have variety of high chrome white iron, and the content of chrome is different.
They can offer excellent performance under erosive conditions. The alloy can be effectively used in a wide range of slurry types. The high wear resistance of alloy is provided by the presence of hard carbides within its microstructure. Some special high chrome alloy is also suited to application where corrosion resistance, as well as erosion resistance is required.

OEM Service
Based on many years of rich experience in slurry pump manufacturing and design, BODA can undertake OEM customization for the whole set of pump and various spare parts. The slurry pump spare parts can be made of various material according to customer's requirement, Such as: Alloy 20, Hastelloy Alloy, A  (6 1 ) and so on.

Our company undertakes the design, processing and transformation of various special pump parts. According to the user's requirements, BODA Factory can manufacture various materials and components to meet the needs of different working conditions. Or in accordance with user requirements on the existing equipment technology transformation, combined with our company's rich hydraulic model, through advanced computer simulation technology, to provide users with a complete and effective solution.

Application:

The parts are widely used in Main Applications: Heavy Mining Mineral Processing Sand and Gravel Coal Prep Cyclone Feeds Aggregate Processing Fine Primary Mill Grinding Chemical Slurry Service Tailings Secondary Grinding Industrial Processing Pulp And Paper Food Processing Cracking Operations Ash Handling Pipeline Transport High Velocity Hydraulic Transport Food Processing Explosive Sludge In Metal Smelting River And Pond Dredging Heavy Refuse Removal Larger Particle Or Low NPSHA Applications Continuous (Snore) Sump Pump Operation Abrasive Slurries High Density Slurries Large Particle Slurries Sump Drainage Wash down Floor Drainage Mixing Iron Ore Cooper Diamond Alumina Coal Gold Kaolin Phosphorite Steel Palm Suger Chemical Power FGD Frac Sand Blending Construction City Sewage etc.

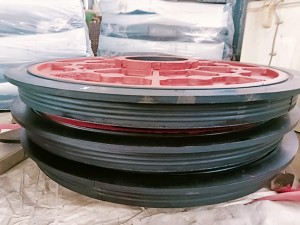

slurry pump frame plate liner MCR 后护板 1 GPS65041A05 后护板 G8041 HS 后护板 _ E4041HS后护板_副本 E4041HS1 slurry pump parts 渣浆泵配件

Disclaimer: The intellectual property shown on the listed product(s) belongs to third parties. These products are only offered as examples of our production capabilities, and not for sale.
