Horizontal Centrifugal Froth Slurry Pump Description:

Horizontal  froth pumps are of heavy duty construction, designed for continuous pumping of highly abrasive and corrosive frothy slurries. Its pumping operations can be plagued by froth and high viscosity problems. In the liberation of minerals from ore, the minerals are often floated through the use of strong flotation agents. Tough bubbles carry the copper, molybdenum or iron tails to be recovered and further processed. These tough bubbles create havoc with many slurry pumps, often leading to the selection of overly large and inefficient pumps. Horizontal froth pumps are small and efficient. The inducer impeller and oversized inlet very effectively enable the froth or viscous slurries to get into the impeller allowing the pump to transport it to the next destination. Low power costs, reliable operation, minimal surging, and feed tank overflow make BODA froth pumps user friendly.

Specification  :

  • Size range (discharge)
    2" to 8"
    100 mm to 150 mm
  • Capacities
    to 3,000 gpm
    to 680 m3/hr
  • Heads
    to 240 ft
    to 73 m
  • Pressures
    to 300 psi
    to 2,020 kPa

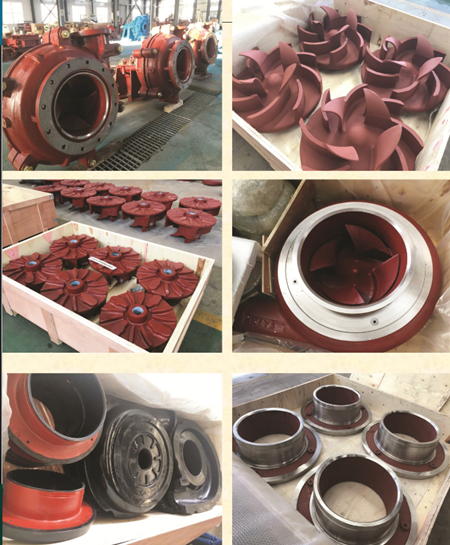

Materials of Construction

LINERS

IMPELLERS

CASING

BASE

EXPELLER

EXPELLER RING

SHAFT SLEEVE

SEALS

Standard

Chrome Alloy
Natural Rubber

Chrome Alloy
Natural Rubber

SG Iron

SG Iron

Chrome Alloy
or
SG Iron

Chrome Alloy
or
SG Iron

SG Iron

Rubber
and
Nitrile

Options

Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Viton
Nitrile
EPDM
Hypalon

Ferralium
Hastelloy C
316 SS
W151
Polyurethane
Neoprene
Butyl
Nitrile
Hypalon

SG Iron
Various grades

MS
Fabricated
Cast Iron

NI Resist
Ferralium
Hastelloy C
Polyurethane
316 SS
W151

NI Resist
Ferralium
Hastelloy C
316 SS
Rubber
W151
Polyurethane
Neoprene
Butyl
Nitrile

EN56C
Ferralium
Hastelloy C
Titanium
316 SS
304 SS

Ceramic
Stellite
Chrome Oxide
Nordel
Neoprene
Viton



Disclaimer: The intellectual property shown on the listed product(s) belongs to third parties. These products are only offered as examples of our production capabilities, and not for sale.
