Description:

IHF Series are single-stage, single suction and fluoroplastic Alloy centrifugal pumps.The pump has a corrosion-resistant, wear-resistant, high temperature resistant, non-aging, high mechanical strength, non-toxic decomposition. The pump body is made by metal housing and FEP (F46) lining, pump cover, impeller and shaft sleeve are made by integrated sintering and pressure molding of metal insert and Fluoro plastic housing, shaft seal is sealed by external bellow mechanical seal.

Main Features:

a)  Has advanced and logical structure
b)  Reliable sealing performance
c)  Stable operation
d)  Low noise and long life-span

Main Uage:

IHF series are widely used with the chemical, pharmaceutical, petroleum, metallurgy, electricity, electroplating, pickling, pesticide, paper and other industries in the liquid delivery, wastewater treatment and processing acids, etc. process.

Technical Data:

Model	Speed n=2900 r/min					转速 n=1450 r/min
	Q(m3/h)	Head (m)	Motor Power Kw	NPSH (m)	Dffiency(%)	Q m3/h	Head (m)	Motor Power Kw	NPSH(m)	Efficieny(%)
IHF40-25-125	6.3	20	1.5	3.0	51
IHF40-25-160	6.3	32	2.2	3.0	46
IHF40-25-200	6.3	50	4	3.0	39
IHF40-25-250	6.3	80	11	3.0	41
IHF50-32-125	12.5	20	2.2	3.0	51	6.3	5	0.55	3.0	45
IHF50-32-160	12.5	32	4	3.0	46	6.3	8	0.55	3.0	40
IHF50-32-200	12.5	50	7.5	3.0	39	6.3	12.5	1.1	3.0	33
IHF65-50-125	25	20	3	3.5	62	12.5	5	0.55	3.5	55
IHF65-50-160	25	32	5.5	3.5	57	12.5	8	1.1	3.5	51
IHF65-40-200	25	50	11	3.5	52	12.5	12.5	1.5	3.5	46
IHF65-40-250	25	80	18.5	3.5	50	12.5	20	3	3.5	43
IHF80-65-125	50	20	5.5	4.0	69	25	5	1.1	4.0	64
IHF80-65-160	50	32	11	4.0	67	25	8	1.5	4.0	62
IHF80-50-200	50	50	15	4.0	63	25	12.5	2.2	4.0	57
IHF80-50-250	50	80	30	4.0	66	25	20	5.5	4.0	51
IHF100-80-125	100	20	11	4.5	77	50	5	1.5	4.5	74
IHF100-80-160	100	32	15	4.5	73	50	8	2.2	4.5	69
IHF100-65-200	100	50	30	4.5	73	50	12.5	5.5	4.5	68
IHF125-80-160	160	32	30	5.0	70	80	8	5.5	5.0	74
IHF125-100-200	250	50	55	5.0	65	100	12.5	11	5.0	71
IHF125-100-280	200	100	90	5.0	73	100	25	15	5.0	73
IHF150-125-315						200	32	30	5.0	73
IHF150-125-400						200	50	45	5.5	74
IHF200-150-315						400	32	55	5.5	74
IHF200-150-400						400	50	90	5.5	74

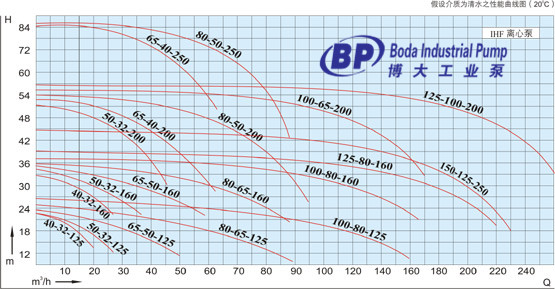

Selection Chart:

Dimension Drawing:
