In the slurry pump industry, selecting the right material is a balance between Wear Resistance and Corrosion Resistance. The most common materials are categorized into metals, rubbers, and ceramics:

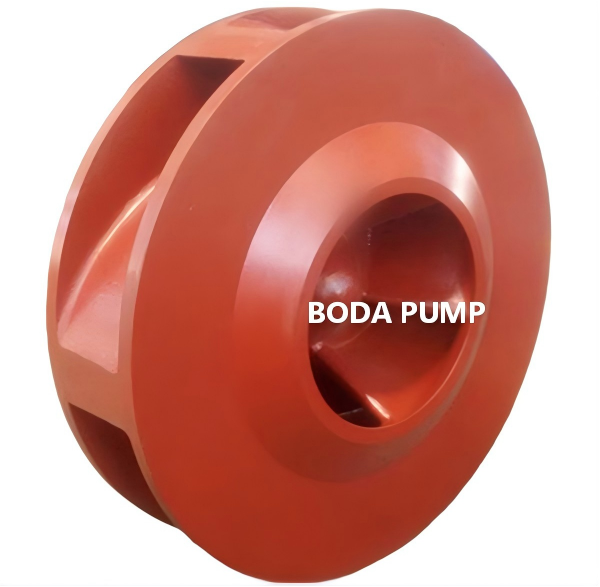

1. Metal Alloys / Hard Metal:
The most widely used metal is A 0 5 (High Chrome Alloy). It is the go-to choice for mining and coal washing because of its excellent hardness. However, for acidic or highly corrosive environments, specialty alloys like A 4 9, Cr 3 0, and Duplex Stainless Steel (304/316) are required.

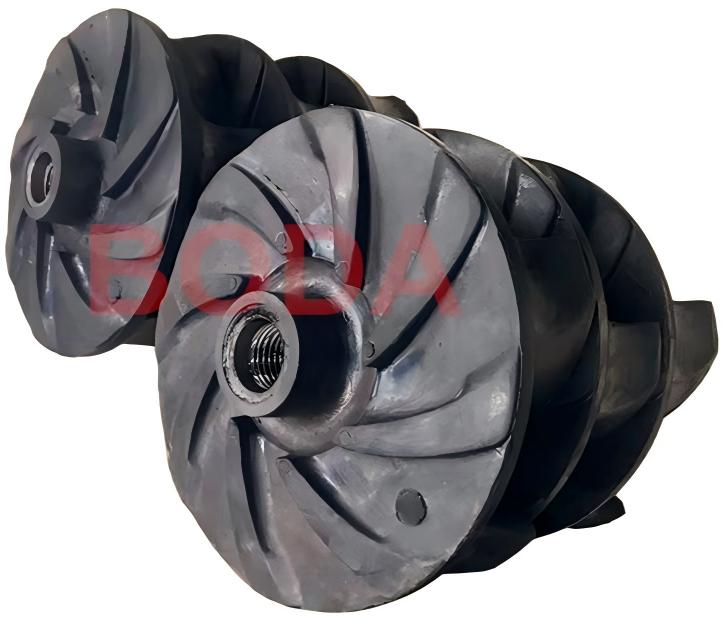

2. Rubber Materials:
Flexibility and Resilience R 5 5 (Natural Rubber) is the industry standard for handling slurries with fine particles and no sharp edges. For chemical applications, specialty rubbers like EPDM or Hypalon are used due to their superior resistance to strong acids and alkalis (PH 0-3 or 12-14).

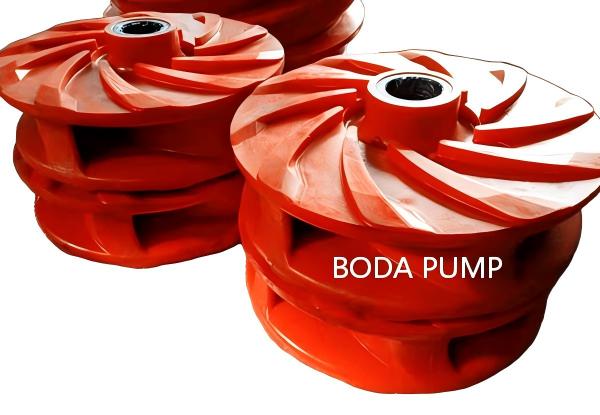

3. Resin (Polyurethane):
Polyurethane (PU) offers a lifespan 3-5 times longer than rubber in specific abrasive applications, providing a perfect balance of toughness and durability.

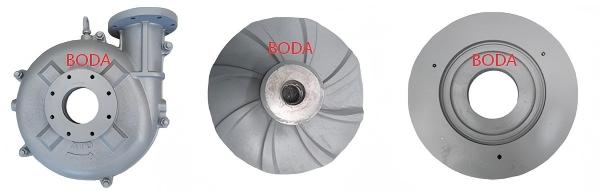

4. Ceramics (Silicon Carbide):
For extreme conditions, Silicon Carbide Ceramics provide the ultimate defense against both severe abrasion and chemical attack.
How to Select Materials Based on pH and Abrasion?
- Abrasive with mild P H: Choose A 0 5 or A 0 7 (Common in Iron/Gold mines).
- Fine particles, no sharp edges: Choose R 5 5 Rubber.
- Power plant Desulfurization (FGD): Choose A 4 9 or Cr 30.
- Strong Acid / High Temp: Choose EPDM or Hypalon.
| Material Category | Common Grades | Key Features | Best Applications | PH Range |
|---|---|---|---|---|
| Metal Alloy | A 0 5, A 0 7, A 3 3 | Ultra-wear resistant, high hardness | Mining, Coal washing | 5 – 12 |
| Rubber | R 5 5 (Natural Rubber) | Erosion resistant, cost-effective | Fine particles, no sharp angles | 4 – 13 |
| Anti-Corrosive Alloy | A 4 9, Cr 30, Duplex SS | High corrosion resistance | Power plant FGD | 3 – 14 |
| Specialty Rubber | EPDM, Hypalon | Chemical & heat resistance | Strong acids/ alkalis | 0 – 14 |
| Ceramics | Silicon Carbide (Si C) | Extreme hardness & stability | High-abrasion mixtures | 0 – 14 |
Upgrade Your Pump Life with High-Performance Parts
Whether you need high-chrome A 0 5 impellers or corrosion-resistant R 5 5 liners, Boda Industrial Pump offers premium replacement parts that meet global standards.
